Sub Jobs

Exercise: Create a job with sub-job.

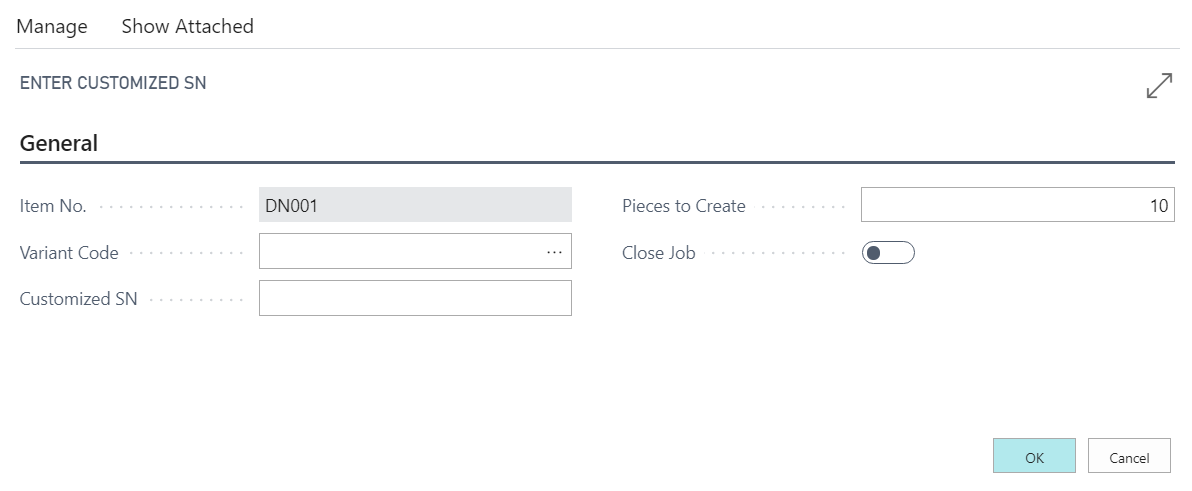

1.    Open Item card for DN001-Diamond Graduated Bezel 16" Collar Necklace.

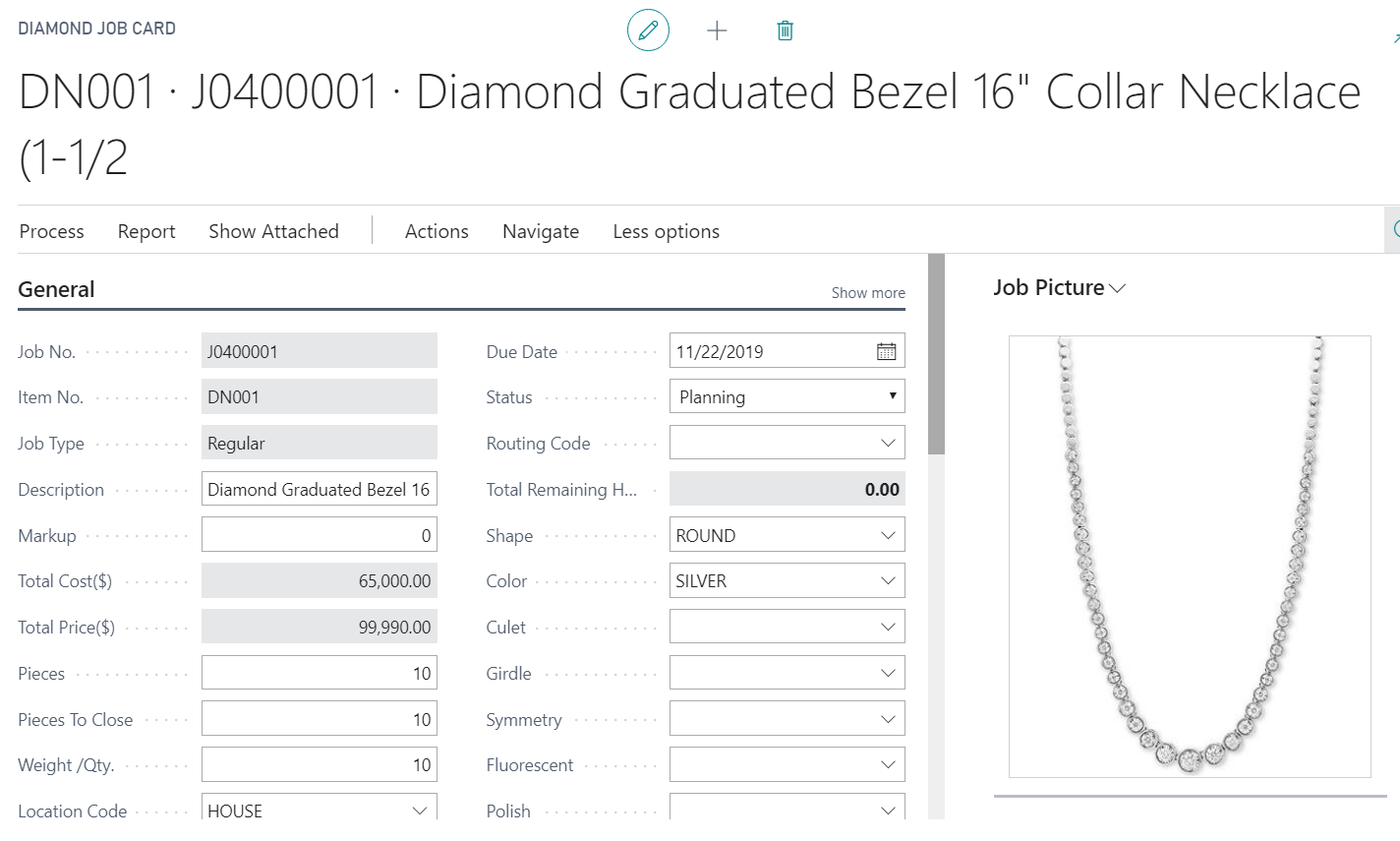

2.    Click Action -> eJewelry -> Regular JOB

3.    New form will appear, in Pieces to create field enter 10.








4.    Click Ok. This will create new diamond job card for item DN001.

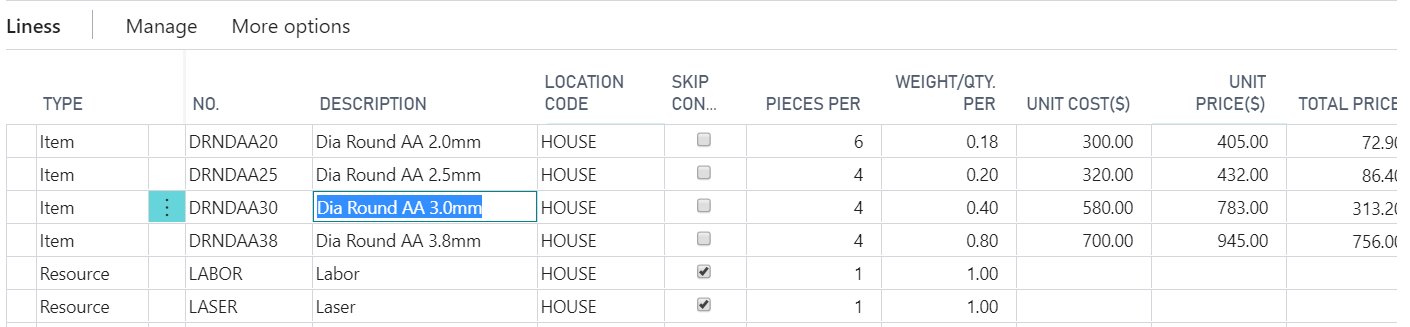

5.    Move on the 1st line on the lines tab.

  • In the type field enter, item.
  • In the item No. field, select DRNDAA20.
  • In the pieces field, enter 6.



6.    Move on the 2nd line on the lines tab.

  • In the type field enter, item.
  • In the item No. field, select DRNDAA25.
  • In the pieces field, enter 4.



7.    Move on the 3rd line on the lines tab.

  • In the type field enter, item.
  • In the item No. field, select DRNDAA30.
  • In the pieces field, enter 4.



8.    Move on the 4th line on the lines tab.

  • In the type field enter, item.
  • In the item No. field, select DRNDAA38.
  • In the pieces field, enter 4.



9.    Move on the 5th line on the lines tab.

  • In the type field enter, Resource.
  • In the item No. field, select LABOR.
  • In the pieces field, enter 1.



10.    Move on the 6th line on the lines tab.

  • In the type field enter, Resource.
  • In the item No. field, select LASER.
  • In the pieces field, enter 1.






11.    The initial job is now ready.



12.    To create sub jobs, follow the steps:

  • Click Actions -> Functions -> Create Sub Jobs.

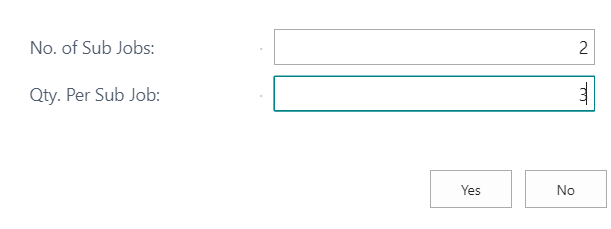

  • New form will appear. In the No. of Sub Jobs field enter 2 & in Qty. per Jobs field enter 3.



  • Click Yes. Sub Job will be created.

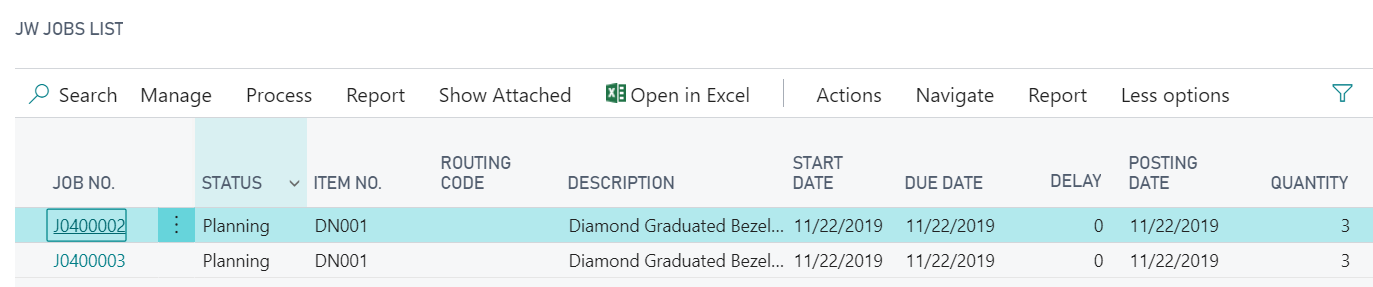

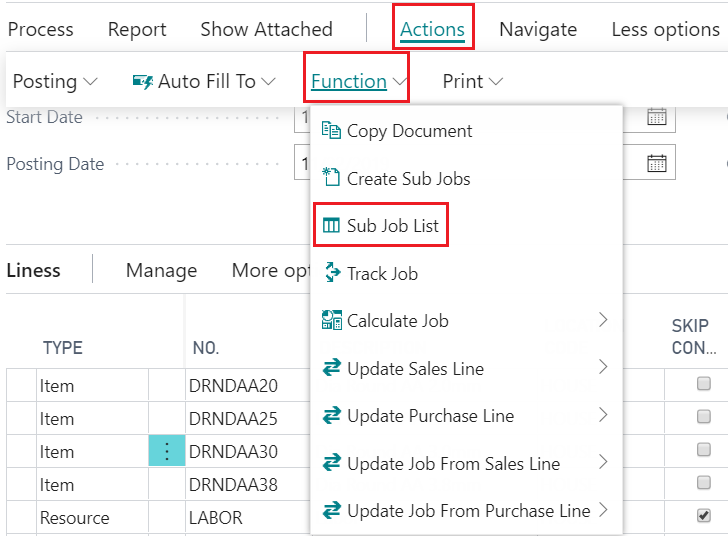

  • To open Sub Jobs, click Action -> Function -> Sub Job List.

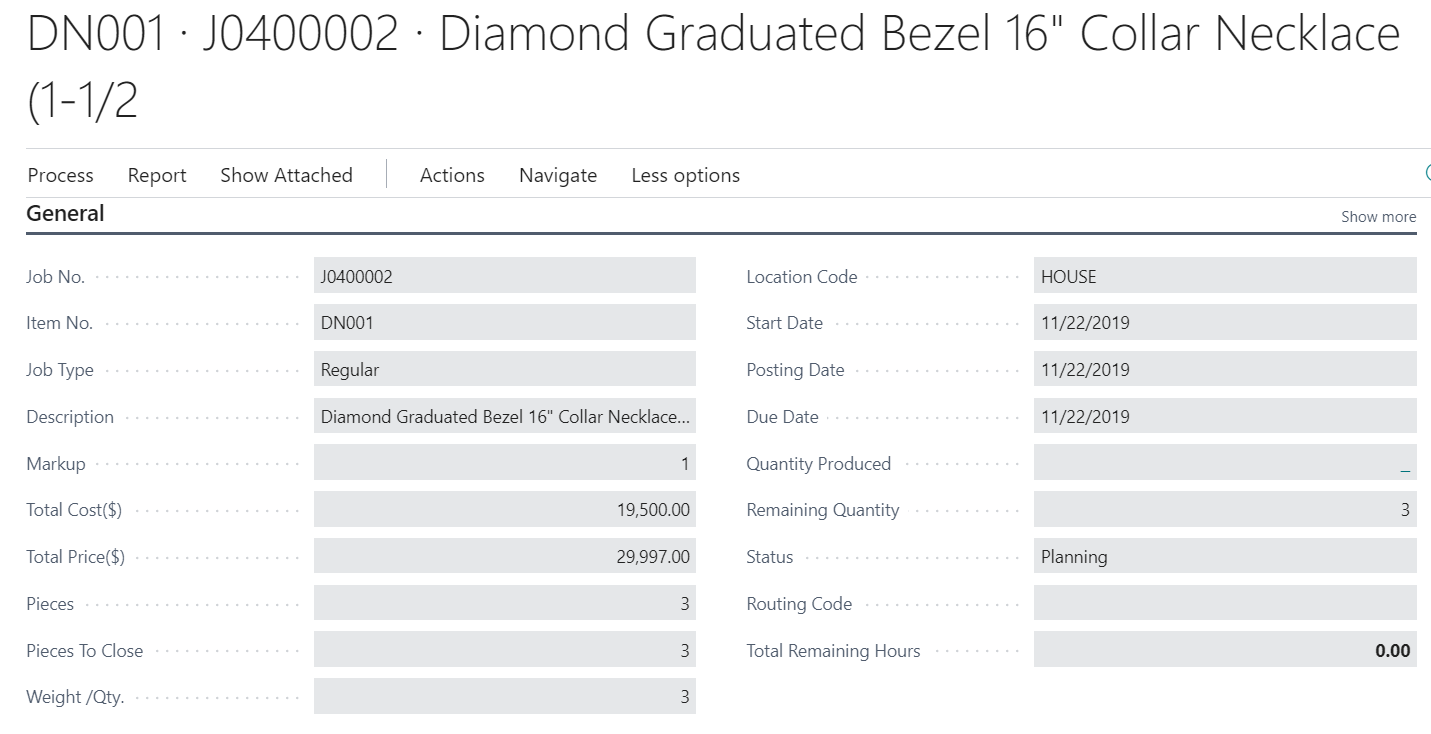

13.    Open Sub Job J0400002.




  • Expand General FastTab. In status field select in progress.
  • Expand Posting options FastTab, select Use Job Consumption.
  • Click Actions -> Autofill to -> Consume.
  • Click Actions -> Post.
  • Posting request form will appear.
  • Select Consume. Click ok.
  • Click Actions -> Post -> Job.
  • Sub Job J0400002 is now posted.

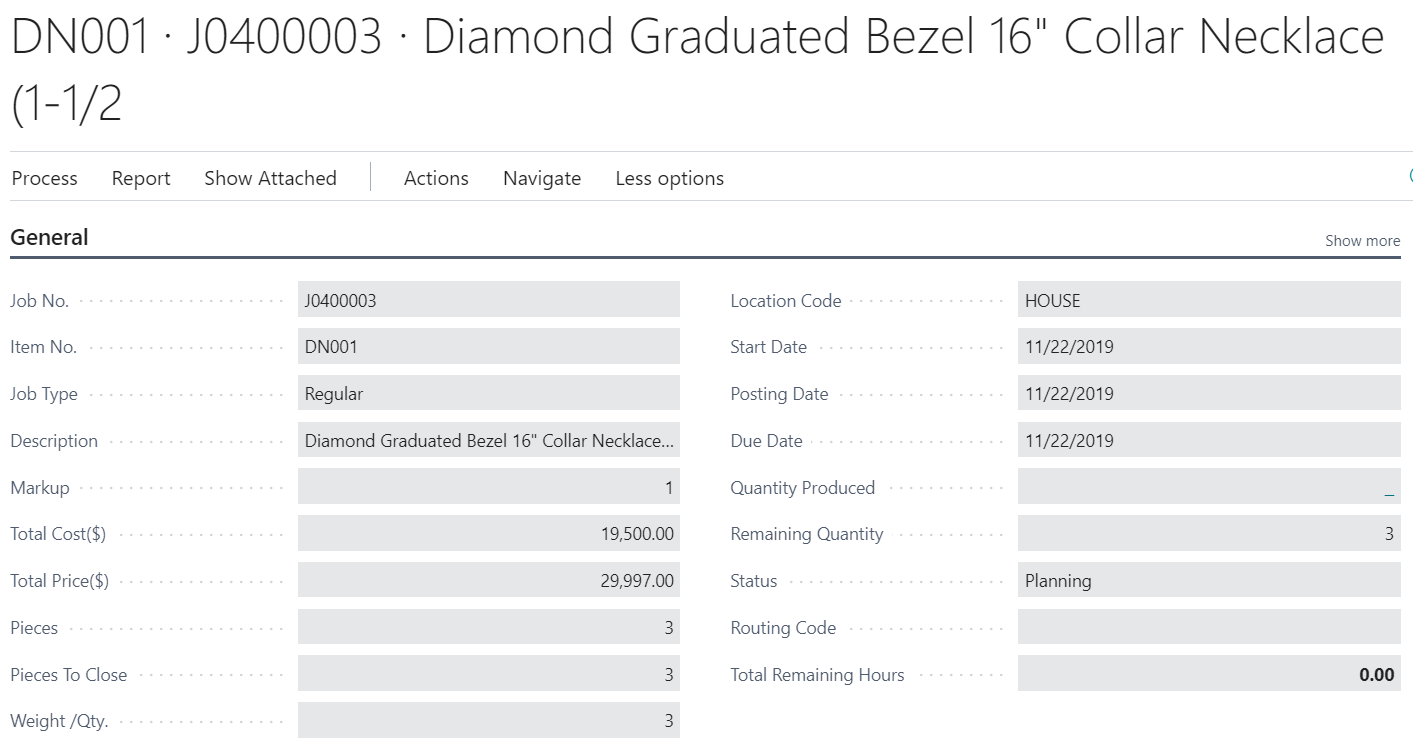

14.    Open Sub Job J0400003.




  • Expand General FastTab. In status field select in progress.
  • Expand Posting options FastTab, select Use Job Consumption.
  • Click Actions -> Autofill to -> Consume.
  • Click Actions -> Post.
  • Posting request form will appear.
  • Select Consume. Click ok.
  • Click Actions -> Post -> Job.
  • Sub Job J0400002 is now posted.



15.    Both sub jobs, are now deleted from sub job list.

16.    Now open the main Job card.

17.    Click Action -> Post.

18.    Posting Form will appear, select JOB & click Ok.
