Create an item 2 layered necklace with BOM (Bill of material) in NAV database.


To fill in the minimum required fields, follow these steps:

1.    On the Navigation Pane, click “Items”. You can reach the same page by searching “Items” in search box at top right corner (a bulb symbol).

2.    Click New -> +New (Create new entry) to open a new Item Card page.

3.    Select the template “item”.

4.    Expand the General FastTab.

5.    No. field: Press ENTER to automatically fill in the next number of the default number series for items in the No. field.

OR

You can manually enter a new item no. apart from default number series. Ex.CNECK0080.

A confirmation message will be displayed, press ok.

[Note: item No. is Primary key for item table, its values cannot be repeated.]

6.    In description field, enter “2 Layered Necklace”.

7.    Click dropdown arrow in Base unit of measure field and select PCS.

8.    Click dropdown arrow in Item category code field and select Chain Necklace.


[Note: Item category codes consist of a combination of posting. When you use an item category code, you do not have to enter posting groups every time that you set up an item card.]

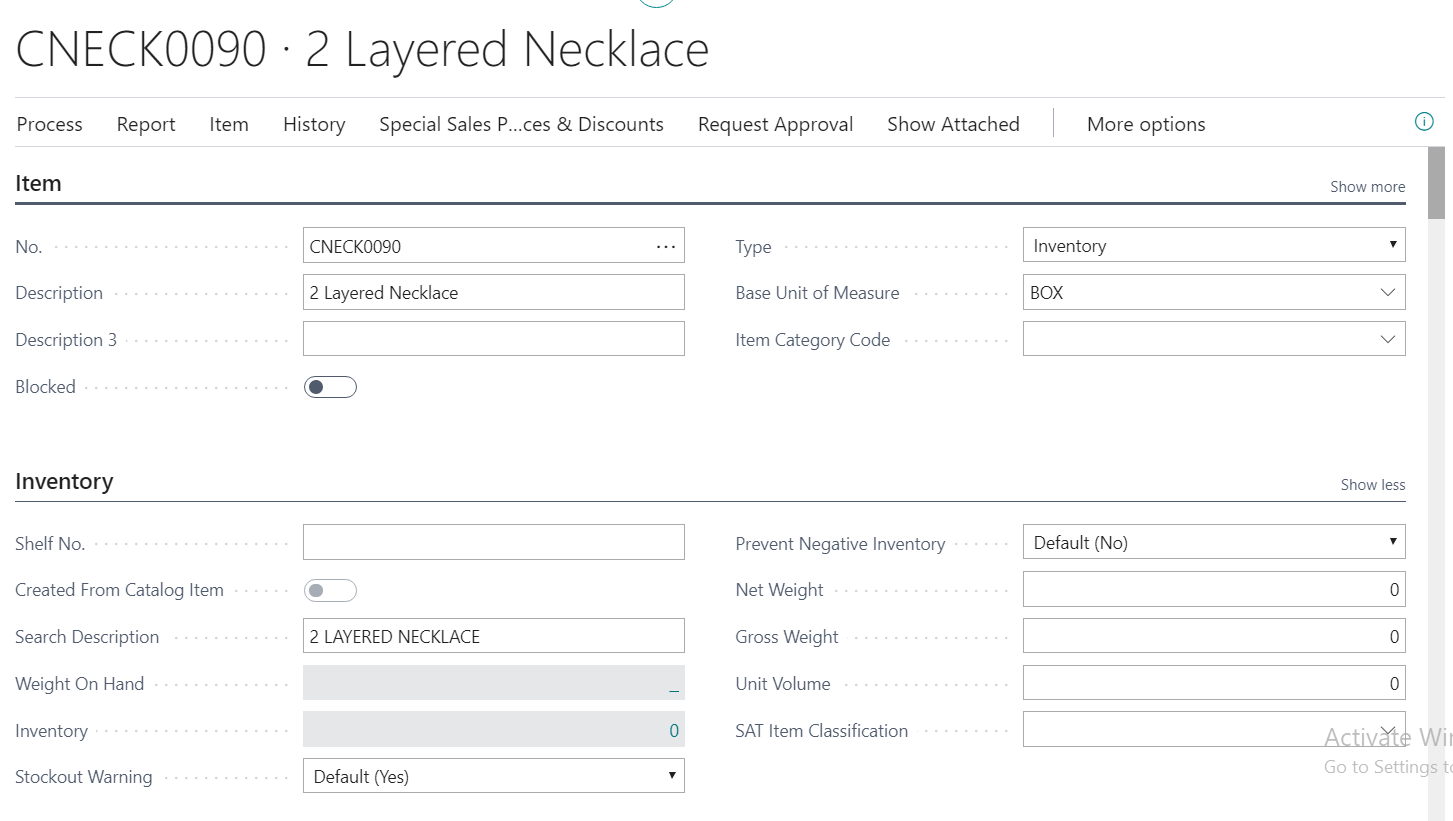

                        Fig. Item Card CNECK0090 – Item & Inventory FastTab


9.    To create item BOM, on the header click Process -> Item BOM.

10.    Item BOM Breakdown card will appear.

  •  In BOM breakdown FastTab move on 1st line.
  • In type field, select Item.
  • In No. field select item no. CNECK030. & in Pieces field, enter 2.
  • In No. field select item no. PNDNT028. & in Pieces field, enter 2.
  • Press ESC to save & close.

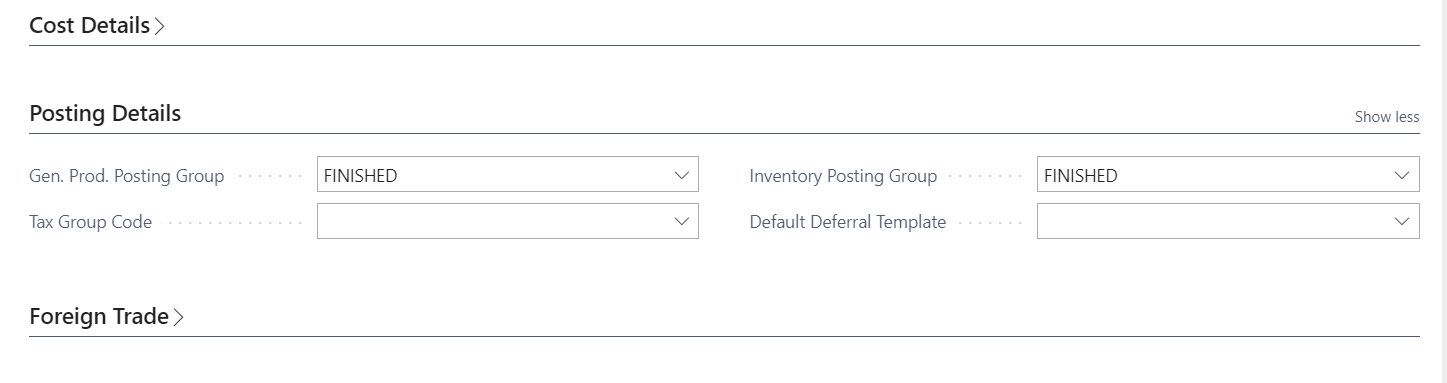

11.    Expand the Posting details FastTab.

12.    Click drop-down arrow in the Gen. Prod. Posting group & select Finished.

13.    Click drop-down arrow in the Inventory Posting group & select Finished.


[Notice that this values are already updated from template]





14.    Expand Prices & Sales FastTab

15.    Click drop-down arrow in Price/Profit Calculation & select Profit=Price-Cost.

16.    Costing Method: Standard

17.    Expand eJewelry FastTab.

18.    Item Calculation Code: TCFG

19.    Click drop down arrow in Item Type field, select Jewelry.

20.    Expand classification FastTab.

21.    In Job unit cost calculation field, select BY BOM.

22.    In Job unit price calculation field, select By BOM.

23.    Press “ESC” to save & close the page.



You do not have to fill in the remaining FastTab and fields now. The new item, CNECK0090, 2 Layered Necklace, is ready for further processing.
